Dynamic NR-DC

Caution

  1. Do not start the Master-gNB and Secondary-gNB on the same machine, as this will cause a GTP port conflict.
  2. Do not start the UE on the same machine as free5GC, as this will cause data plane forwarding failures.

There are two options for deployment:

  • Use separate machines.
  • Use namespace separation. For details, please refer to Quick Start.

A. Prerequisites

  • Golang:

    • free-ran-ue is built, tested and run with go1.24.5 linux/amd64

    • If Golang is not installed on your system, please execute the following commands:

      • Install Golang:

        wget https://dl.google.com/go/go1.24.5.linux-amd64.tar.gz
sudo tar -C /usr/local -zxvf go1.24.5.linux-amd64.tar.gz
mkdir -p ~/go/{bin,pkg,src}
# The following assume that your shell is bash:
echo 'export GOPATH=$HOME/go' >> ~/.bashrc
echo 'export GOROOT=/usr/local/go' >> ~/.bashrc
echo 'export PATH=$PATH:$GOPATH/bin:$GOROOT/bin' >> ~/.bashrc
echo 'export GO111MODULE=auto' >> ~/.bashrc
source ~/.bashrc

      • Check Installation. You should see the version information:

        go version

    • If another version of Golang is installed, please execute the following commands to replace it:

      sudo rm -rf /usr/local/go
wget https://dl.google.com/go/go1.24.5.linux-amd64.tar.gz
sudo tar -C /usr/local -zxvf go1.24.5.linux-amd64.tar.gz
source $HOME/.bashrc
go version

  • Node.js

    • free-ran-ue's console is built, test and run with node v20.19.2 / yarn v1.22.22.

    • If node and yarn is not installed on your system, olease execute the following commands:

      • Install node and yarn:

        curl -fsSL https://deb.nodesource.com/setup_20.x | sudo -E bash -
sudo apt update
sudo apt install -y nodejs
sudo corepack enable

      • Check Installation. You should see the version information:

        node -v
yarn -v

B. Clone and Build free-ran-ue

  • Clone

    git clone https://github.com/Alonza0314/free-ran-ue.git

  • Build

    cd free-ran-ue
make all

    After building, a binary executable file and frontend static files will be generated in the build folder.

C. Start gNBs

  • Modify the configuration file for gNBs:

    The configuration YAML file template is located at:

    • free-ran-ue/config/gnb-dc-dynamic-master.yaml
    • free-ran-ue/config/gnb-dc-dynamic-secondary.yaml

    Ensure that the information matches your core network settings. For core network settings, please refer to: Start free5GC

    Please also pay attention to the xnIp and xnPort field, as these will be used for the Xn-interface between the gNBs.

    Also noticed the fields staticNrdc that should be set as false for disabling static NR-DC.

  • Start gNB:

    After configuring the YAML file, execute the binary in the build folder to start gNBs with the specified configuration file:

    • Master-gNB:

      ./build/free-ran-ue gnb -c config/gnb-dc-dynamic-master.yaml

    • Secondary-gNB:

      ./build/free-ran-ue gnb -c config/gnb-dc-dynamic-secondary.yaml

D. Start UE

  • Modify the configuration file for UE:

    The configuration YAML file template is located at free-ran-ue/config/ue-dc-dynamic.yaml.

    Ensure that the information matches your web console settings, especially the authenticationSubscription section. For web console settings, please refer to: Create Subscriber via Webconsole

    To test the dual connectivity feature, there should be at least one flow rule (e.g. 1.1.1.1/32) configured under the subscriber.

    Pay attention to the ueTunnelDevice field, as this will be the name of the network interface created later. Also make sure the nrdc section is configure correctly. In dynamic case, the nrdc should be set as false in the beginning.

  • Start UE:

    After configuring the YAML file,execute the binary in the build folder to start UE with the specified configuration file:

    ./build/free-ran-ue ue -c config/ue-dc-dynamic.yaml

E. Start Console

  • Modify the configuration file for console:

    The configuration YAML file template is located at free-ran-ue/config/console.yaml.

    The port field will be used for accessing the console page.

    Make sure the gNB's configuration YAML has the api section for console access, like:

    api:
  ip: "10.0.1.2"
  port: 40104

  • Start Console

    After configuring the YAML file, execute the binary in the build folder to start console with the specified configuration file:

    ./build/free-ran-ue console -c config/console.yaml

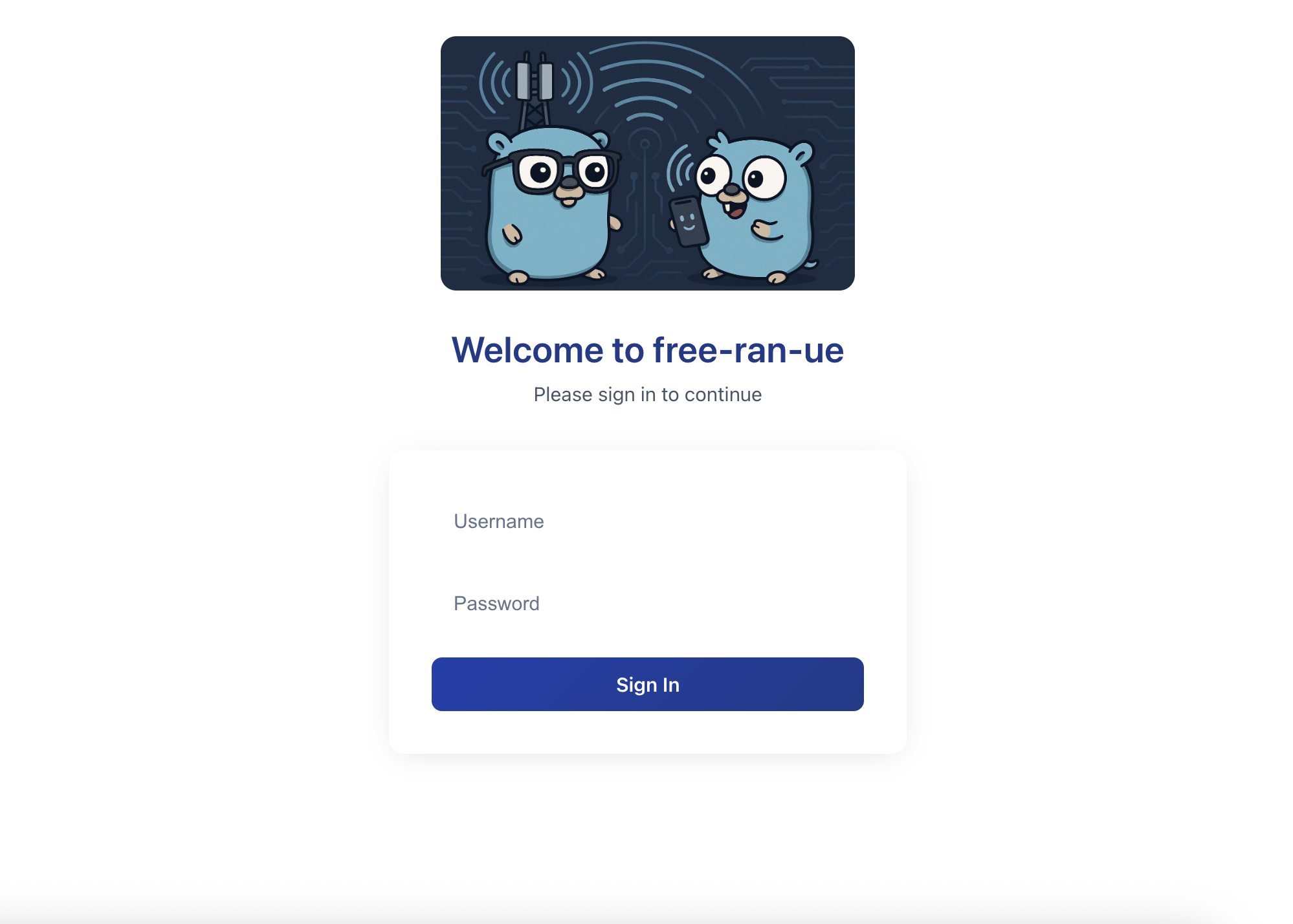

    • Sign in console:

      • username: admin
      • password: free-ran-ue

      free-ran-ue-console-login

    • Add gNB:

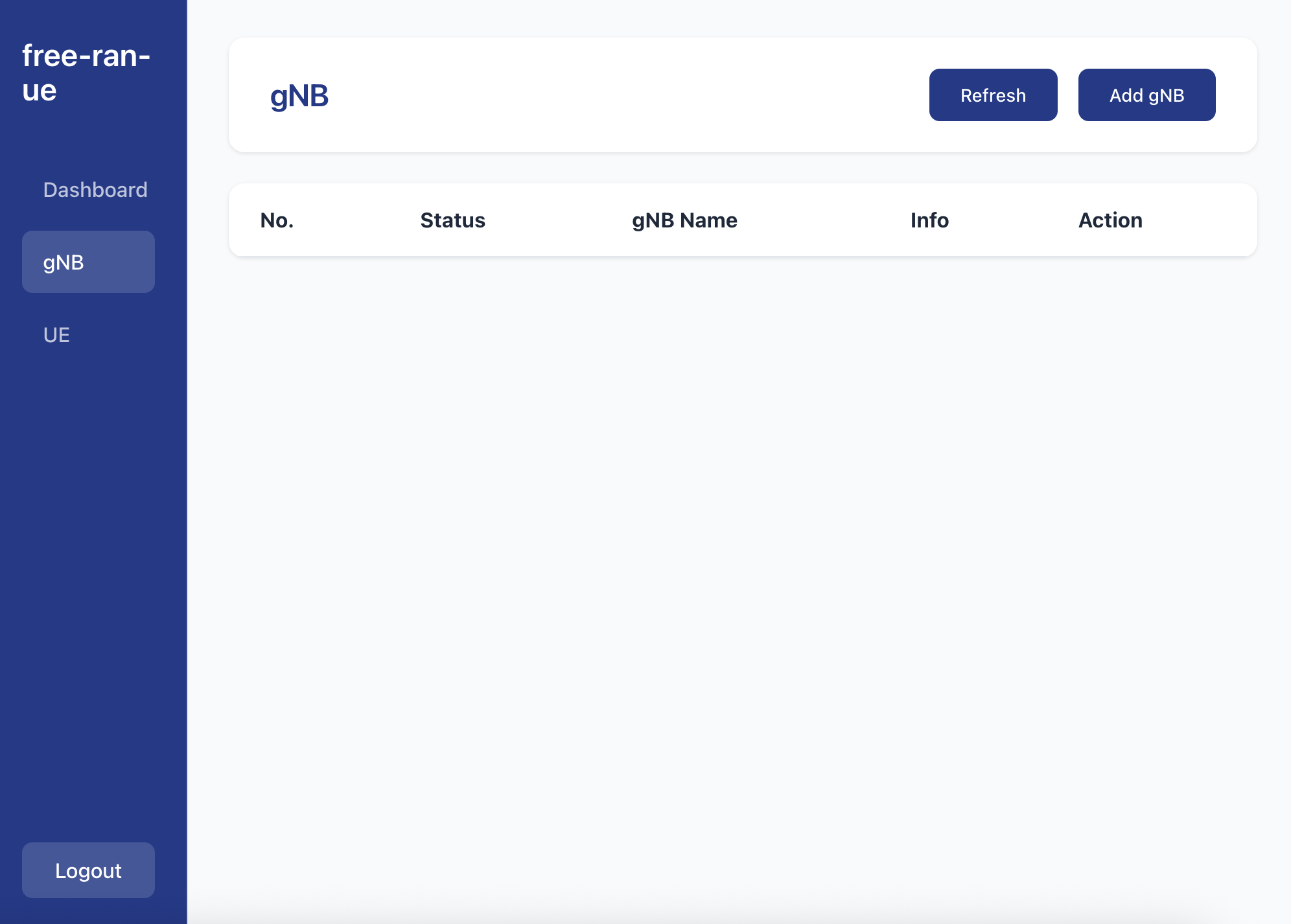

      Enter the gNB page:

      free-ran-ue-gNB

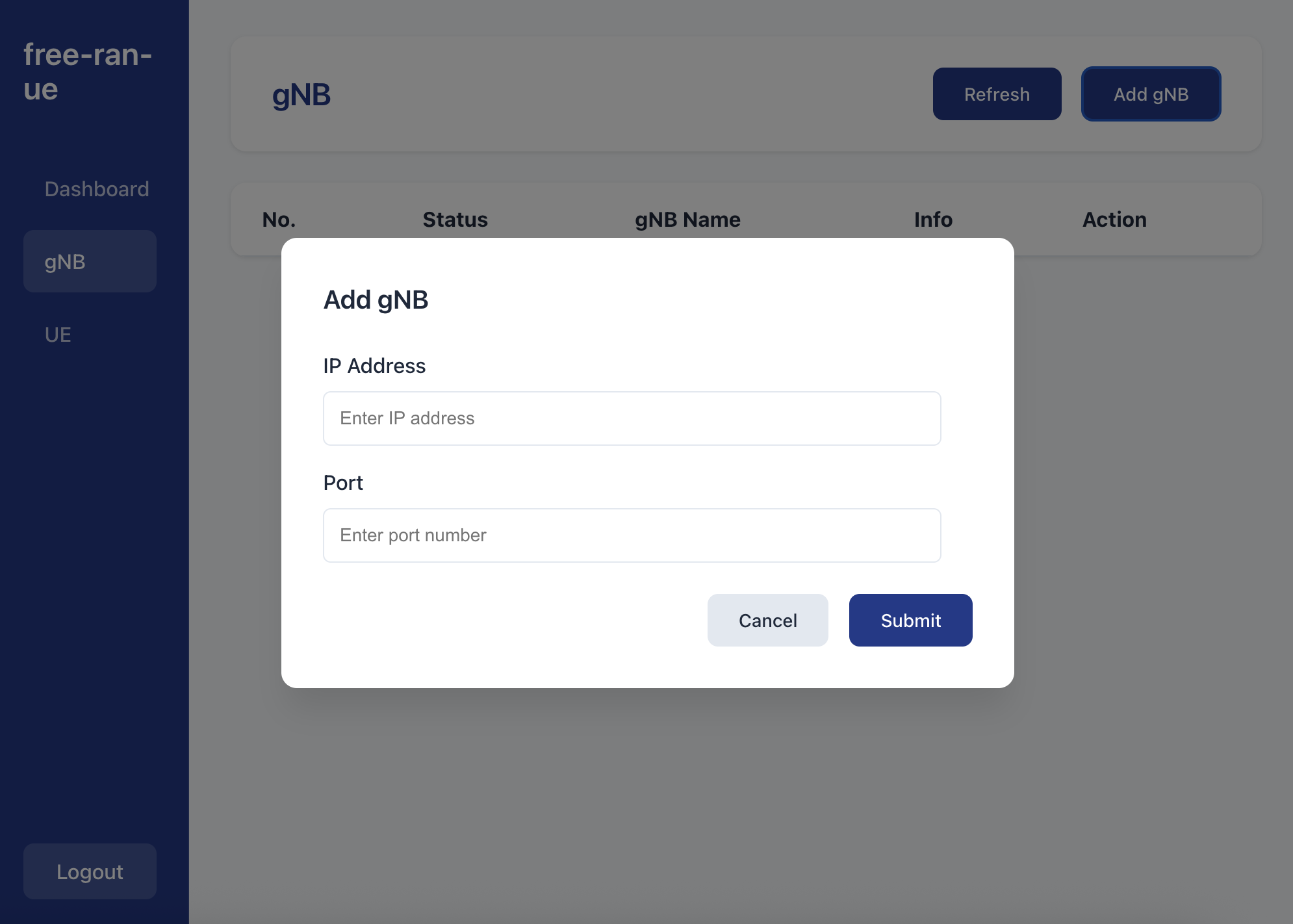

      Click the Add gNB button and enter the target gNB's API IP and port based the configuration file:

      free-ran-ue-gNB-add

F. ICMP Test

After UE has started, a network interface will be available. Use ifconfig to check it:

ifconfig

Expected output included:

ueTun0: flags=4305<UP,POINTOPOINT,RUNNING,NOARP,MULTICAST>  mtu 1500
        inet 10.60.0.1  netmask 255.255.255.255  destination 10.60.0.1
        inet6 fe80::b1e9:2933:3c64:b981  prefixlen 64  scopeid 0x20<link>
        unspec 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00  txqueuelen 500  (UNSPEC)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 3  bytes 144 (144.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

  • Before DC enabled:

    ICMP test with ueTun0 via Master-gNB:

    ping -I ueTun0 8.8.8.8 -c 5

    Expected successful output:

    PING 8.8.8.8 (8.8.8.8) from 10.60.0.2 ueTun0: 56(84) bytes of data.
64 bytes from 8.8.8.8: icmp_seq=1 ttl=116 time=3.71 ms
64 bytes from 8.8.8.8: icmp_seq=2 ttl=116 time=4.08 ms
64 bytes from 8.8.8.8: icmp_seq=3 ttl=116 time=3.82 ms
64 bytes from 8.8.8.8: icmp_seq=4 ttl=116 time=4.25 ms
64 bytes from 8.8.8.8: icmp_seq=5 ttl=116 time=3.77 ms

--- 8.8.8.8 ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 4006ms
rtt min/avg/max/mdev = 3.706/3.926/4.252/0.206 ms

    ICMP test with ueTun0 via Secondary-gNB:

    ping -I ueTun0 1.1.1.1 -c 5

    Expected successful output:

    PING 1.1.1.1 (1.1.1.1) from 10.60.0.2 ueTun0: 56(84) bytes of data.
64 bytes from 1.1.1.1: icmp_seq=1 ttl=49 time=4.51 ms
64 bytes from 1.1.1.1: icmp_seq=2 ttl=49 time=4.46 ms
64 bytes from 1.1.1.1: icmp_seq=3 ttl=49 time=4.27 ms
64 bytes from 1.1.1.1: icmp_seq=4 ttl=49 time=3.97 ms
64 bytes from 1.1.1.1: icmp_seq=5 ttl=49 time=4.64 ms

--- 1.1.1.1 ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 4007ms
rtt min/avg/max/mdev = 3.972/4.371/4.644/0.232 ms

  • Use console to start DC:

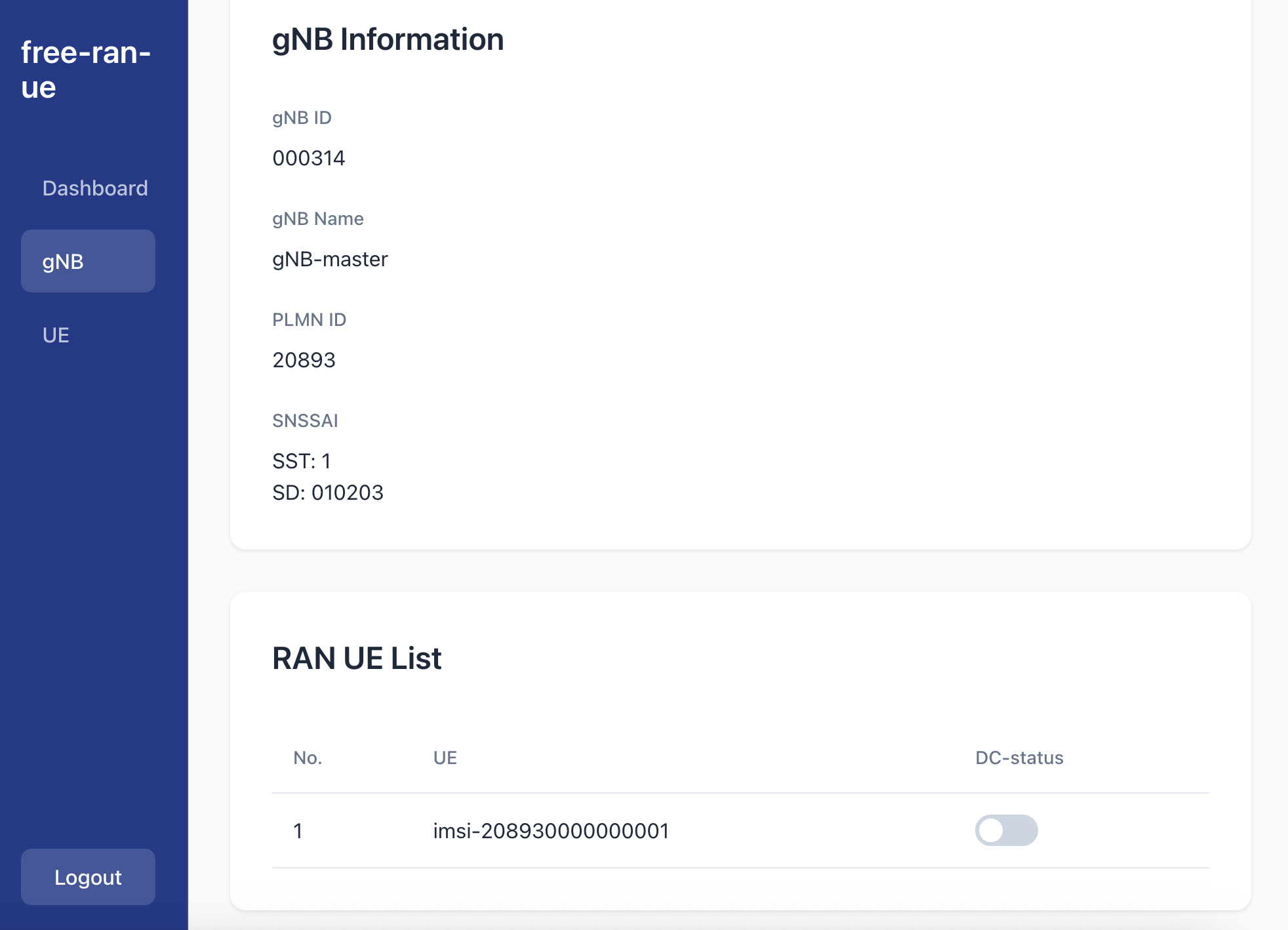

    1. Enter master gNB's information page:

      free-ran-ue-gNB-info-non-dc

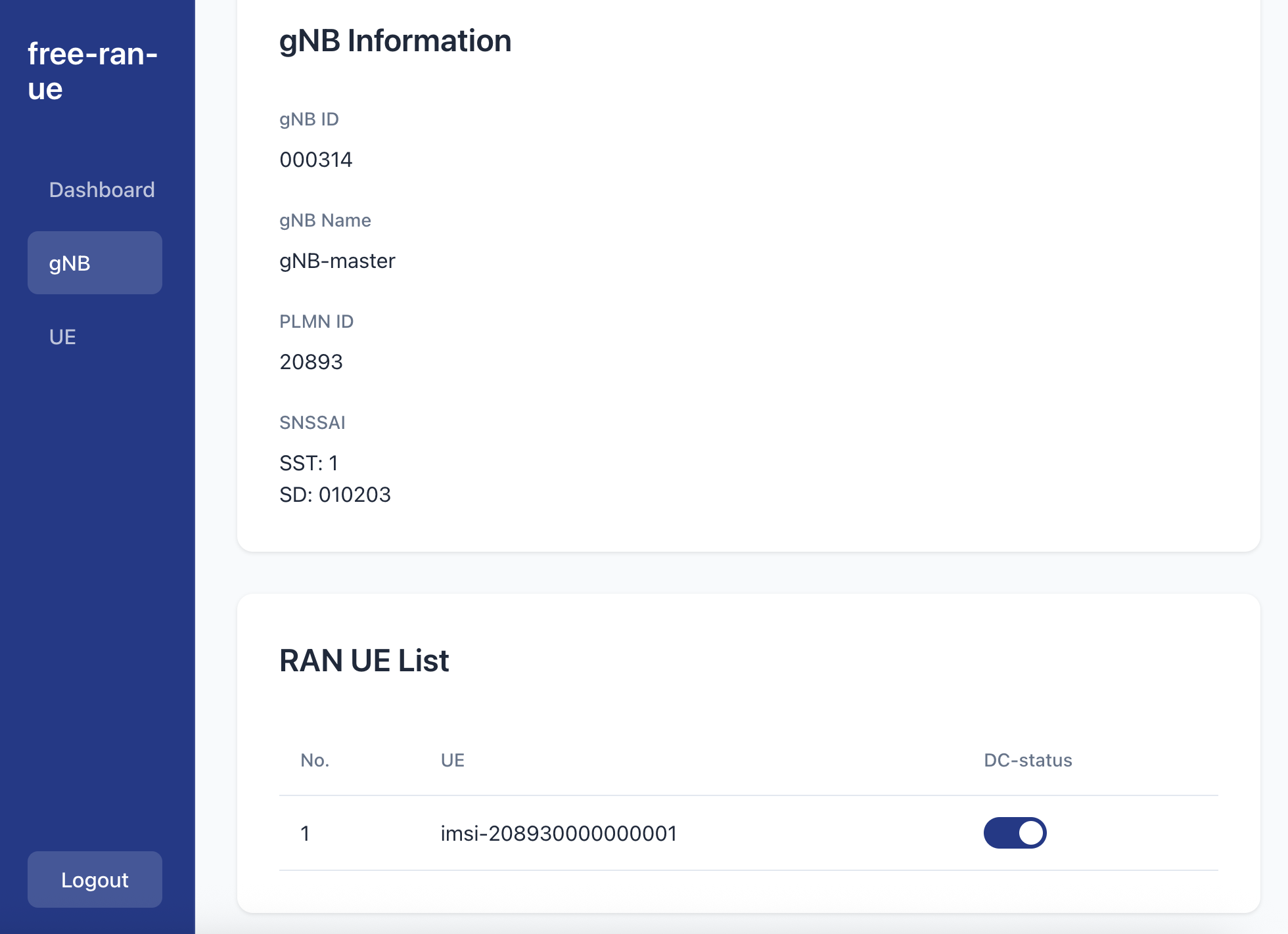

    2. Turn on the DC of UE:

      free-ran-ue-gNB-info-dc

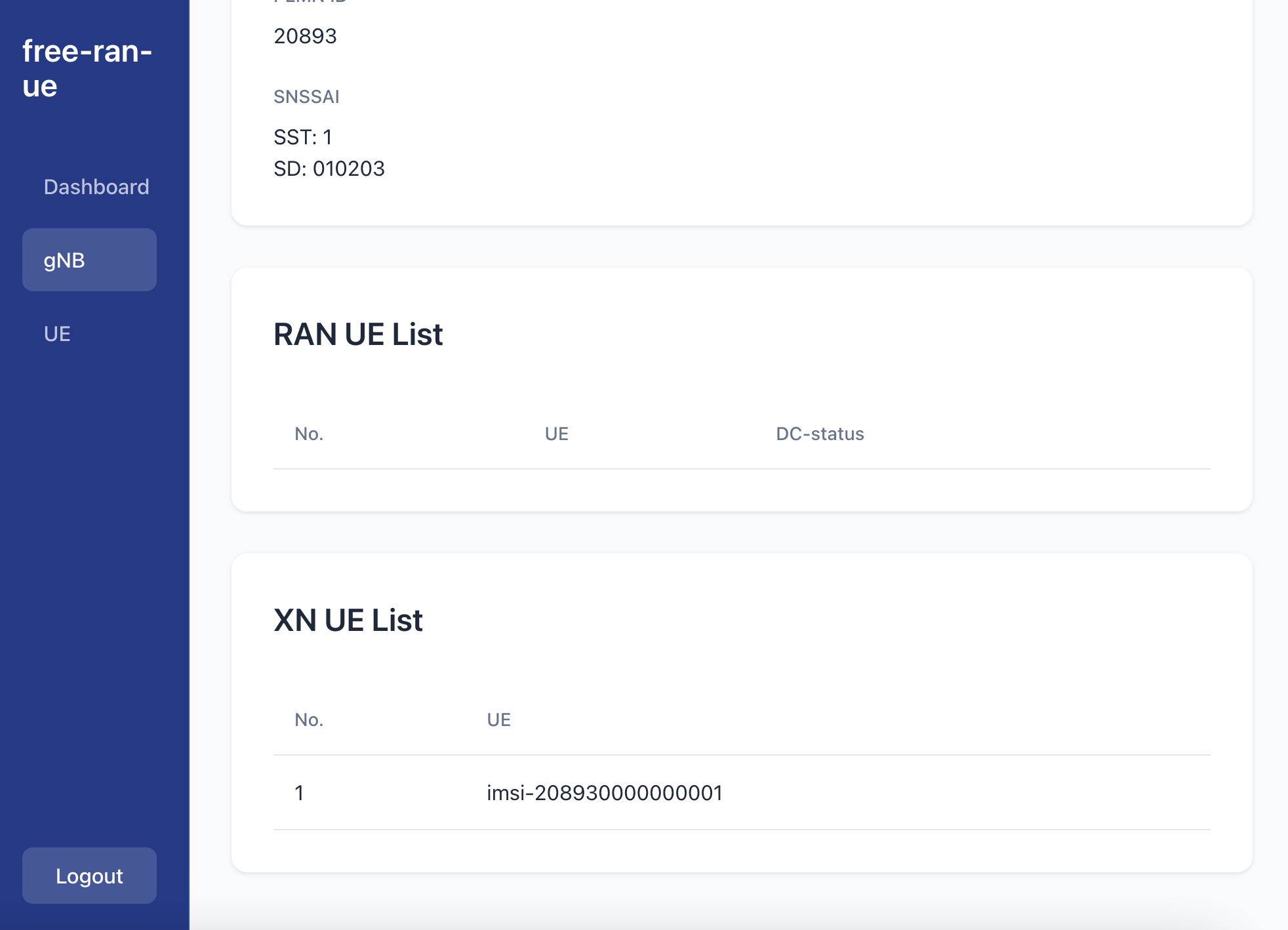

    3. Check XnUe is exist in secondary gNB:

      free-ran-ue-gNB-xnue

  • After DC enabled:

    ICMP test with ueTun0 via Master-gNB:

    ping -I ueTun0 8.8.8.8 -c 5

    Expected successful output:

    PING 8.8.8.8 (8.8.8.8) from 10.60.0.2 ueTun0: 56(84) bytes of data.
64 bytes from 8.8.8.8: icmp_seq=1 ttl=116 time=4.12 ms
64 bytes from 8.8.8.8: icmp_seq=2 ttl=116 time=4.11 ms
64 bytes from 8.8.8.8: icmp_seq=3 ttl=116 time=3.99 ms
64 bytes from 8.8.8.8: icmp_seq=4 ttl=116 time=3.68 ms
64 bytes from 8.8.8.8: icmp_seq=5 ttl=116 time=3.63 ms

--- 8.8.8.8 ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 4007ms
rtt min/avg/max/mdev = 3.627/3.905/4.120/0.212 ms

    ICMP test with ueTun0 via Secondary-gNB:

    ping -I ueTun0 1.1.1.1 -c 5

    Expected successful output:

    PING 1.1.1.1 (1.1.1.1) from 10.60.0.2 ueTun0: 56(84) bytes of data.
64 bytes from 1.1.1.1: icmp_seq=1 ttl=49 time=4.80 ms
64 bytes from 1.1.1.1: icmp_seq=2 ttl=49 time=4.43 ms
64 bytes from 1.1.1.1: icmp_seq=3 ttl=49 time=4.42 ms
64 bytes from 1.1.1.1: icmp_seq=4 ttl=49 time=4.21 ms
64 bytes from 1.1.1.1: icmp_seq=5 ttl=49 time=4.78 ms

--- 1.1.1.1 ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 4006ms
rtt min/avg/max/mdev = 4.210/4.527/4.797/0.225 ms
