Console

A. Prerequisites

• Golang:

  • free-ran-ue is built, tested and run with go1.24.5 linux/amd64

  • If Golang is not installed on your system, please execute the following commands:

    • Install Golang:

      wget https://dl.google.com/go/go1.24.5.linux-amd64.tar.gz
      sudo tar -C /usr/local -zxvf go1.24.5.linux-amd64.tar.gz
      mkdir -p ~/go/{bin,pkg,src}
      # The following assume that your shell is bash:
      echo 'export GOPATH=$HOME/go' >> ~/.bashrc
      echo 'export GOROOT=/usr/local/go' >> ~/.bashrc
      echo 'export PATH=$PATH:$GOPATH/bin:$GOROOT/bin' >> ~/.bashrc
      echo 'export GO111MODULE=auto' >> ~/.bashrc
      source ~/.bashrc


    • Check Installation. You should see the version information:

      go version


  • If another version of Golang is installed, please execute the following commands to replace it:

    sudo rm -rf /usr/local/go
    wget https://dl.google.com/go/go1.24.5.linux-amd64.tar.gz
    sudo tar -C /usr/local -zxvf go1.24.5.linux-amd64.tar.gz
    source $HOME/.bashrc
    go version


• Node.js

  • free-ran-ue's console is built, test and run with node v20.19.2 / yarn v1.22.22.

  • If node and yarn is not installed on your system, olease execute the following commands:

    • Install node and yarn:

      curl -fsSL https://deb.nodesource.com/setup_20.x | sudo -E bash -
      sudo apt update
      sudo apt install -y nodejs
      sudo corepack enable


    • Check Installation. You should see the version information:

      node -v
      yarn -v


B. Clone and Build free-ran-ue

• Clone

  git clone https://github.com/Alonza0314/free-ran-ue.git


• Build

  cd free-ran-ue
  make all


  After building, a binary executable file and frontend static files will be generated in the build folder.

C. Start Console

• Modify the configuration file for console:

  The configuration YAML file template is located at free-ran-ue/config/console.yaml.

  The port field will be used for accessing the console page.

  Make sure the gNB's configuration YAML has the api section for console access, like:

  api:
    ip: "10.0.1.2"
    port: 40104


• Start Console

  After configuring the YAML file, execute the binary in the build folder to start console with the specified configuration file:

  ./build/free-ran-ue console -c config/console.yaml


D. Access Console

Start your browser, and access your host's ip with the port configure in the YAML file.

You will see the page like this:

Enter username and password:

• username: admin
• password: free-ran-ue

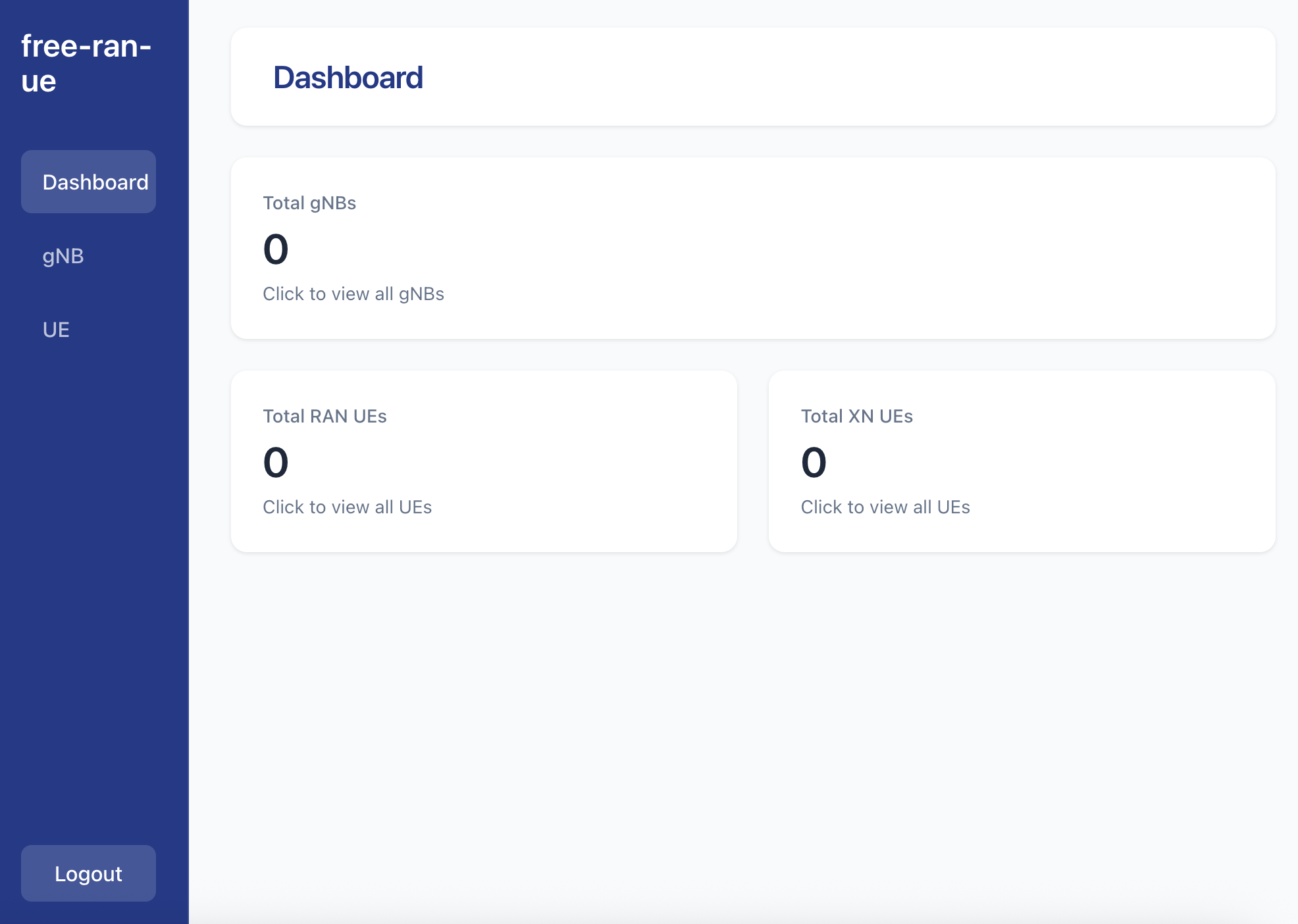

Then you will see the dashboard:

E. Add gNB

Enter the gNB page:

Click the Add gNB button and enter the target gNB's API IP and port based the configuration file:

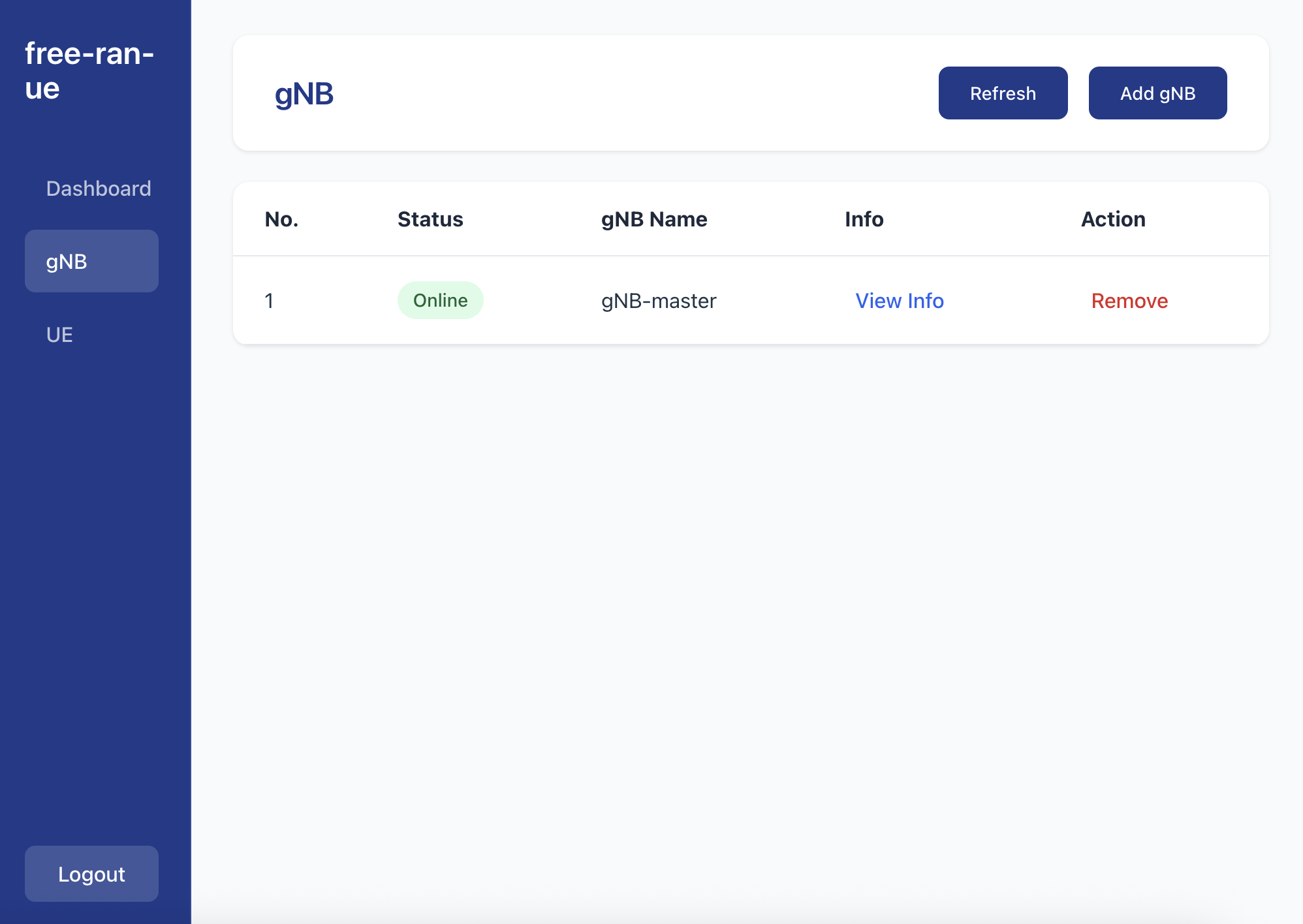

Add success:

F. UE

At UE page, you can see the UE which is connected to gNB or be XnUE at secondary gNB.

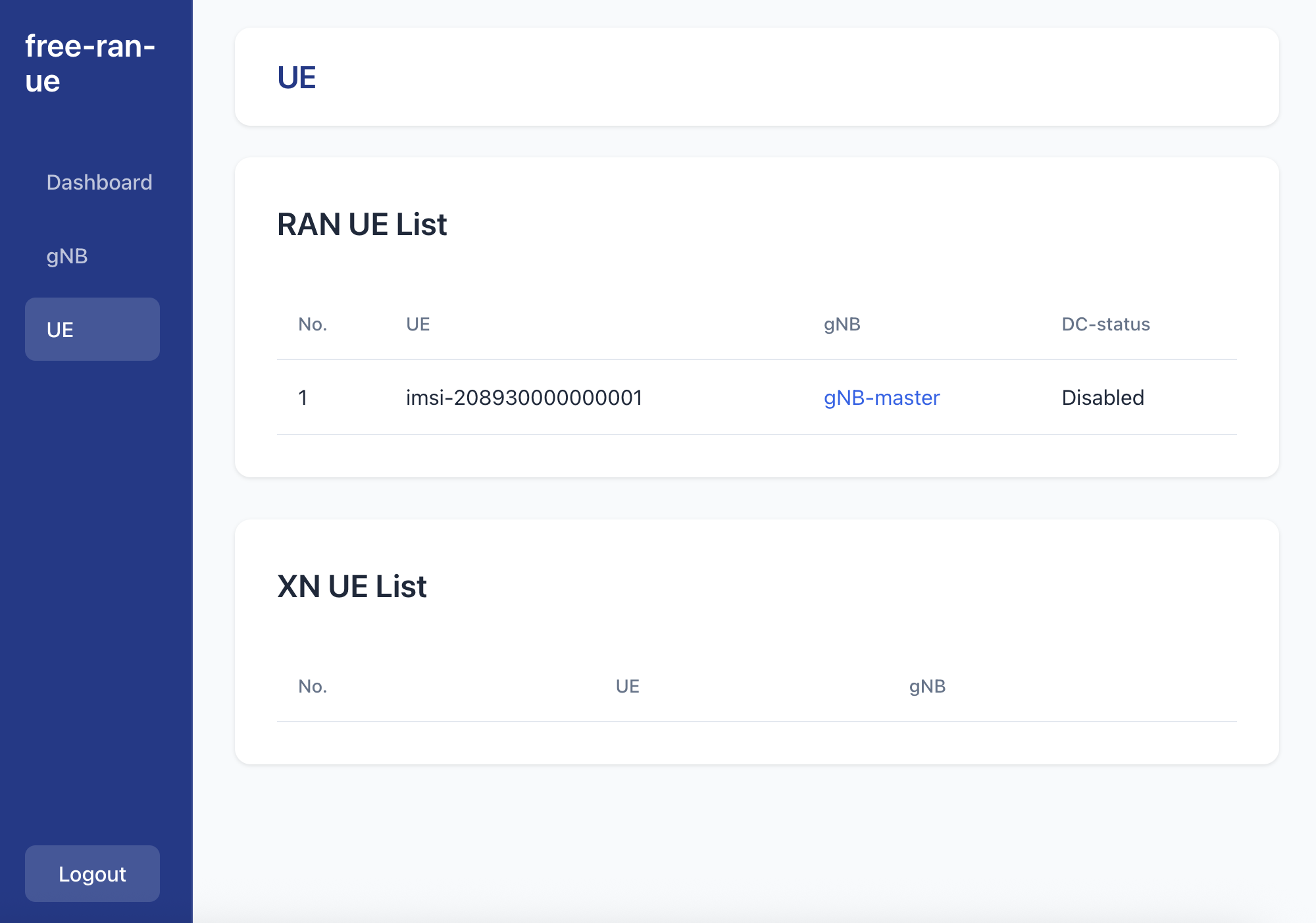

• RAN UE List means there is basic UE connection via gNB:

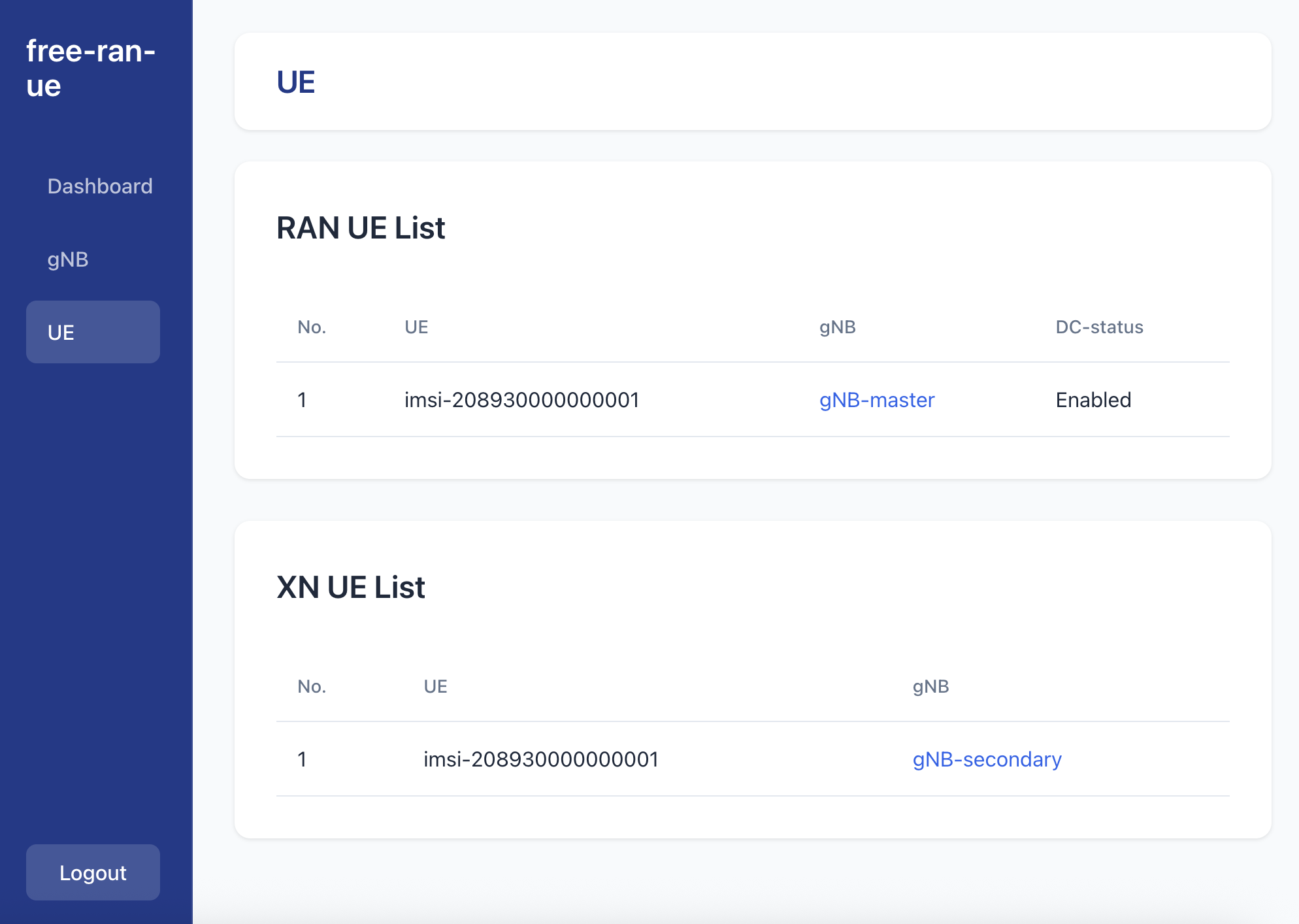

• Xn UE List means there is DC UE connection at gNB:
